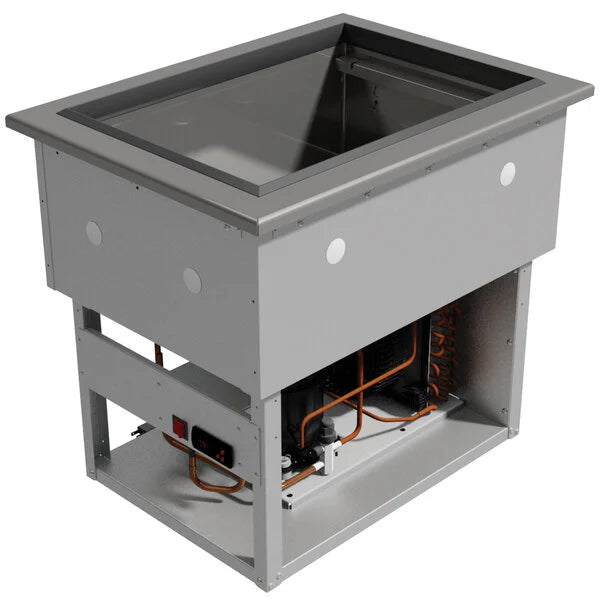

New Advance Tabco DIRCP-1 Stainless Steel One Pan Drop-In Refrigerated Cold Pan Unit 120V
New Advance Tabco DIRCP-1 Stainless Steel One Pan Drop-In Refrigerated Cold Pan Unit 120V
Low stock: 2 left
Couldn't load pickup availability
This is a brand new never used item, still in the crate from manufacture.
But, since we are selling it as a 3rd party the warranty does not carry over.
Was bought and then never used, only stored in warehouse till now.
Some information we found online:
Perfect for cold bar items such as bottle drinks or salad bar essentials, this Advance Tabco DIRCP-1 stainless steel one well drop-in refrigerated cold pan unit is a must-have serving addition. This unit includes adapter bars and can accommodate one 12'' x 20'' food pan, while a high nominal cooling capacity of 1500 BTUs per hour offers guaranteed product temperature control. Aluminum encased copper tube evaporator panels improve heat transfer by increasing contact area. Additionally, the integrated expansion valve offers efficient operation at various temperature conditions.
This item is designed for long lasting use thanks to an insulated pan and all welded stainless steel construction that includes:
- 18 gauge, 304 series stainless steel top with extruded black polyethylene thermal breaker marine edge
- 22 gauge galvanized steel enclosed outer jacket
- 18 gauge, 304 series stainless steel liner with 3'' recessed top ground and polished to a uniform finish
- 16 gauge galvanized understructure
A 1'' IPS drain is fitted to the bottom of the basin for easy removal of melted ice and water. Other features include a liquid receiver for improved refrigerant charge control, low running current, sight glass, and refrigerant filter drier that ensures the overall cleanliness of the sealed refrigeration circuit. The fully self contained condensing unit is provided with a hermetically sealed compressor alongside a digital and programmable thermostat.
The Advance Tabco DIRCP-1 drop-in cold pan unit requires a 120V electrical connection.
Overall Dimensions:
Left to Right: 20''
Front to Back: 26 3/4''
Height: 23 3/4''
Cutout Dimensions:
Left to Right: 18 5/8''
Front to Back: 25 1/2''
Height: 9 3/4''
