Dayton
Upblast Food Truck Restaurant Aluminum Ventilator 115V, 0.25hp
Upblast Food Truck Restaurant Aluminum Ventilator 115V, 0.25hp
Low stock: 1 left
Couldn't load pickup availability

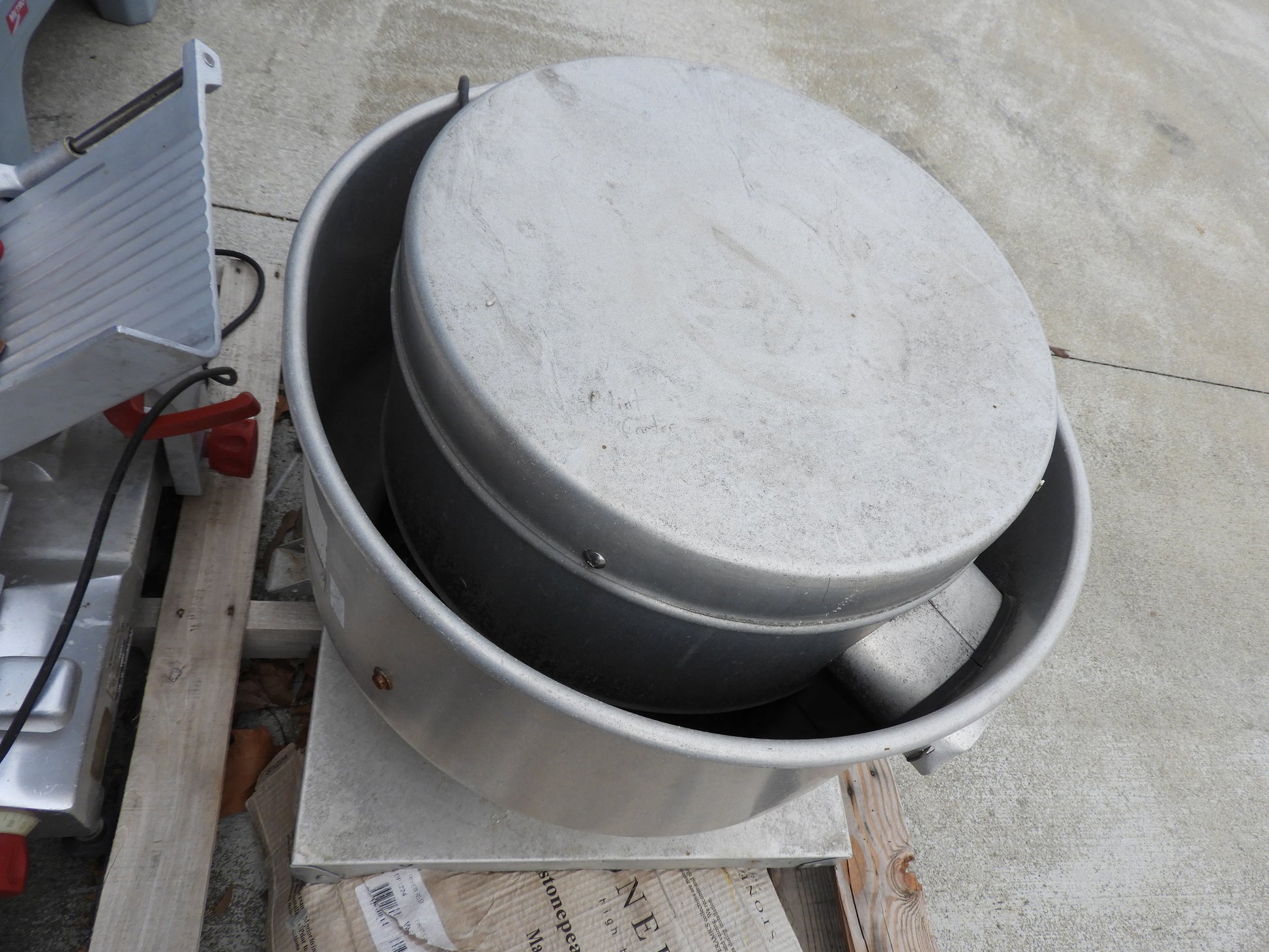

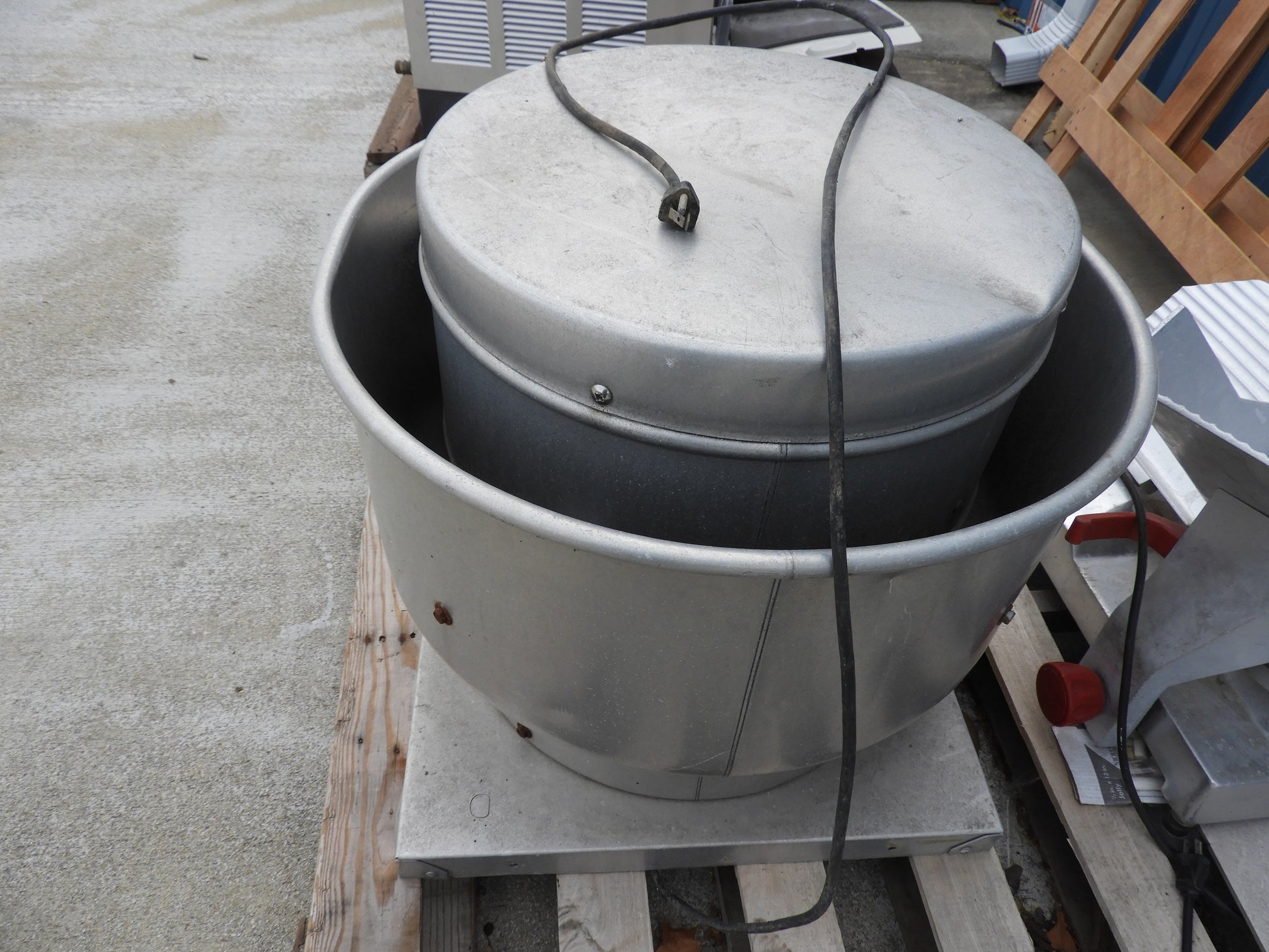

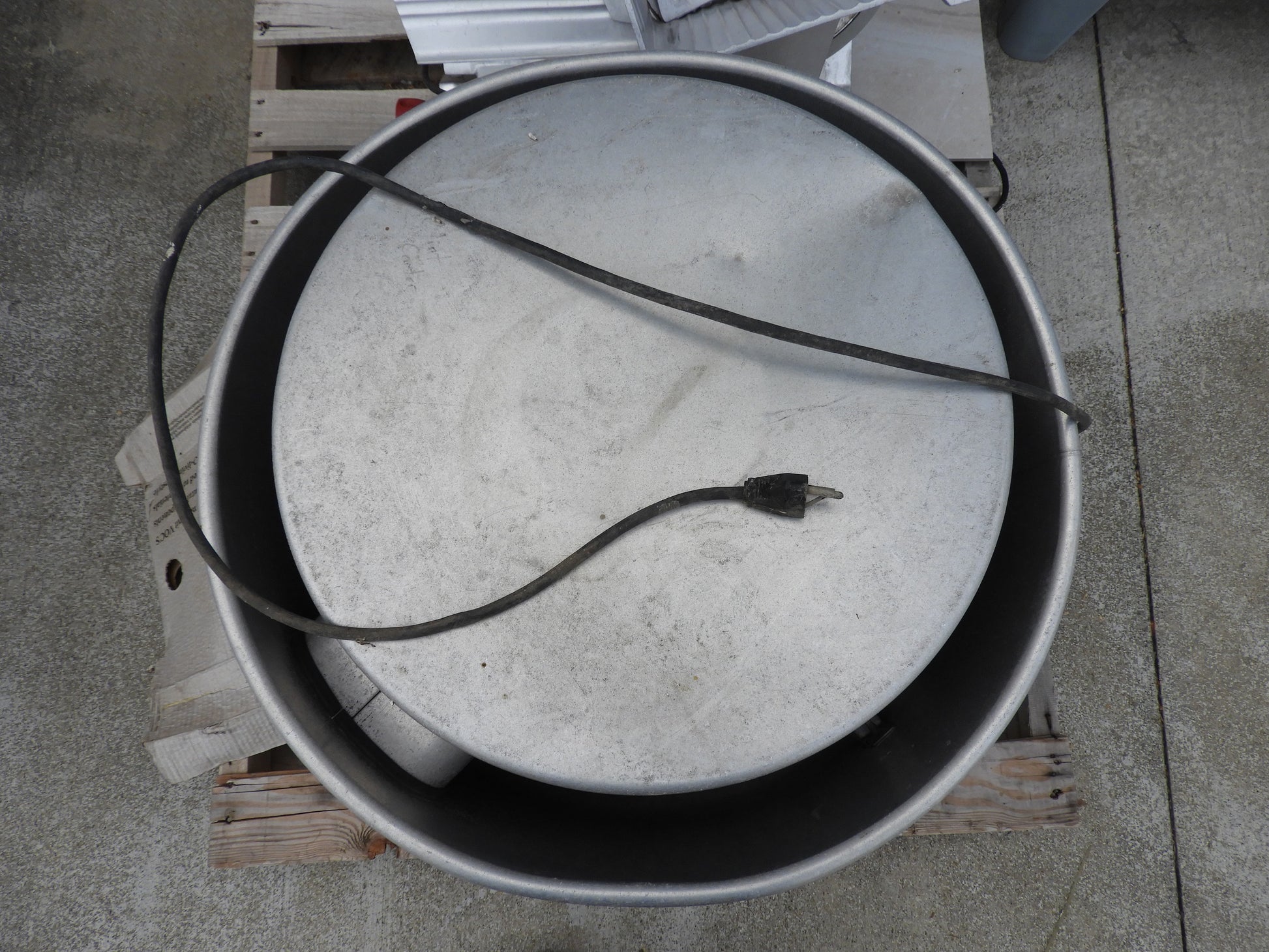

This ventilator is used but in working condition. There may be some scuffs or scratches on it from use. There is a small dent on the top (see pictures) This is 110 volts and would be great for a food truck or concession trailer.
Some information form online:
Centrifugal Upblast Roof Exhaust Fan, Application Industrial and Commercial Buildings, Restaurants, Schools, Drive Type Direct Drive, For Air Type Kitchen Air, Base Diameter Not Applicable, Base Width 22 in, Base Length 22 in, Base Shape Square, Maximum Static Pressure 1 in wc, Exhaust Airflow @ 0.000 in SP 1,468 cfm, Nameplate Voltage 115V AC, Phase 1, Motor Horsepower 1/4 hp, Assembly Assembled, Number of Speeds 1, Housing Material Aluminum, Wheel Material Aluminum, High-Efficiency Motor No
| Base Size - Roof Ventilators | 22 in x 22 in |
| Shaft Dia. Wheel End | 1/2 in |
| Dimension D | 17 3/8 in |
| Base Width | 22" |
| Dimension C | 22 in |
| Base Square Size - Roof Ventilators | 22" x 22" |
| Recommended Damper Size (In.) | 15 x 15 |
| Wheel Dia. | 11 in |
| Dimension B | 24 7/8 in |
| Overall Height | 22 in |
| Base Length | 22" |
| Base Height | 1 3/4 in |
| Dimension A | 22 in |
| Overall Dia. | 24 7/8 in |
| Overall Width | 24 7/8 in |
| Propeller Shaft Diameter | 1/2 in |
| Housing Width | 24.9 in |
| Housing Length | 24.9 in |
| Cutout Size | 17.5 in L x 17.5 in W |
| Overall Depth | 23 3/4 in |
| Overall Diameter | 24 7/8 in |
| Cutout Length | 17.5 in |
| Base Dimension | 22 in Square |
| Damper Size | 15 x 15 in |
| Wheel Diameter | 11 in |
| Base Diameter | Not Applicable |
