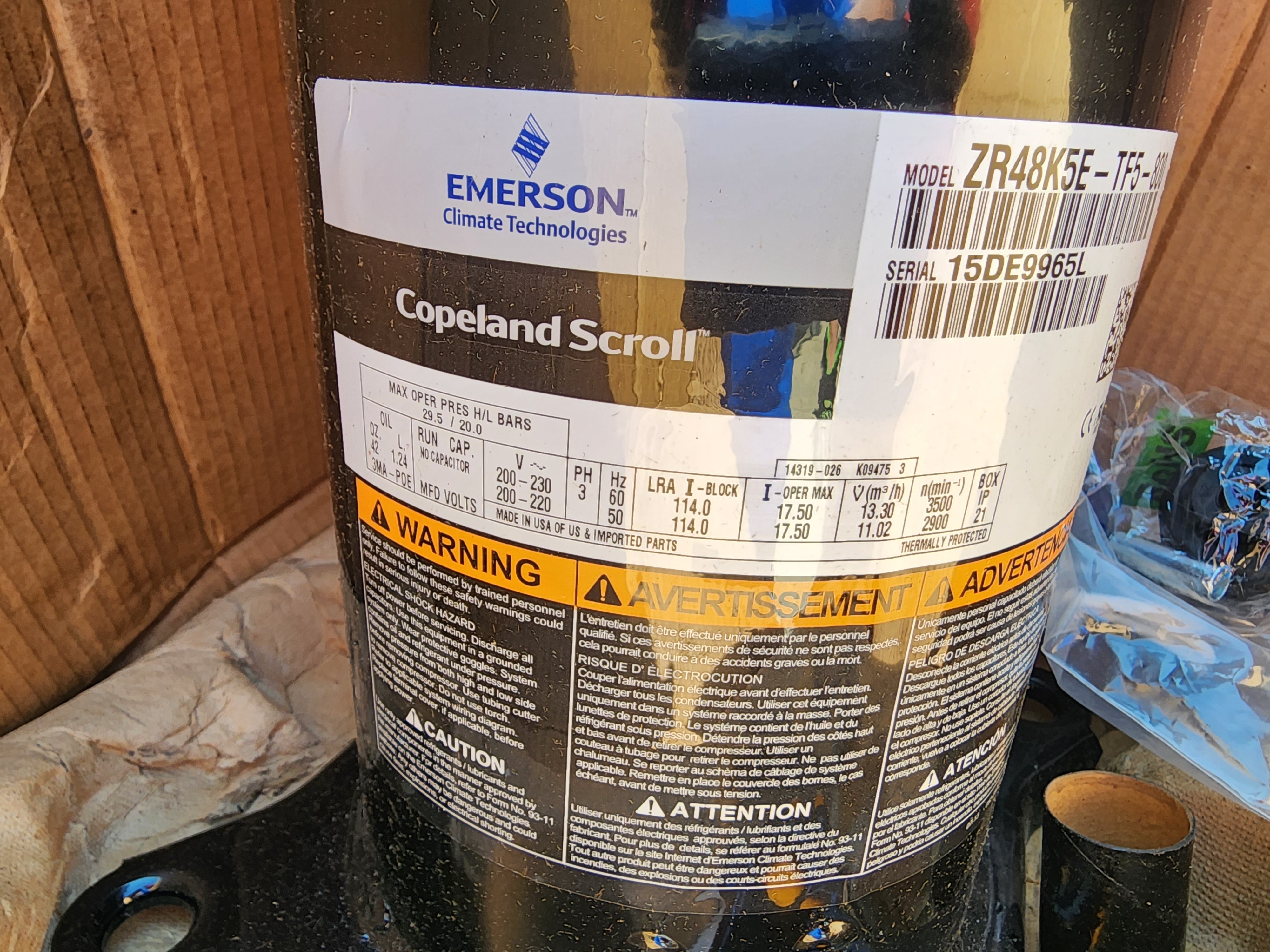

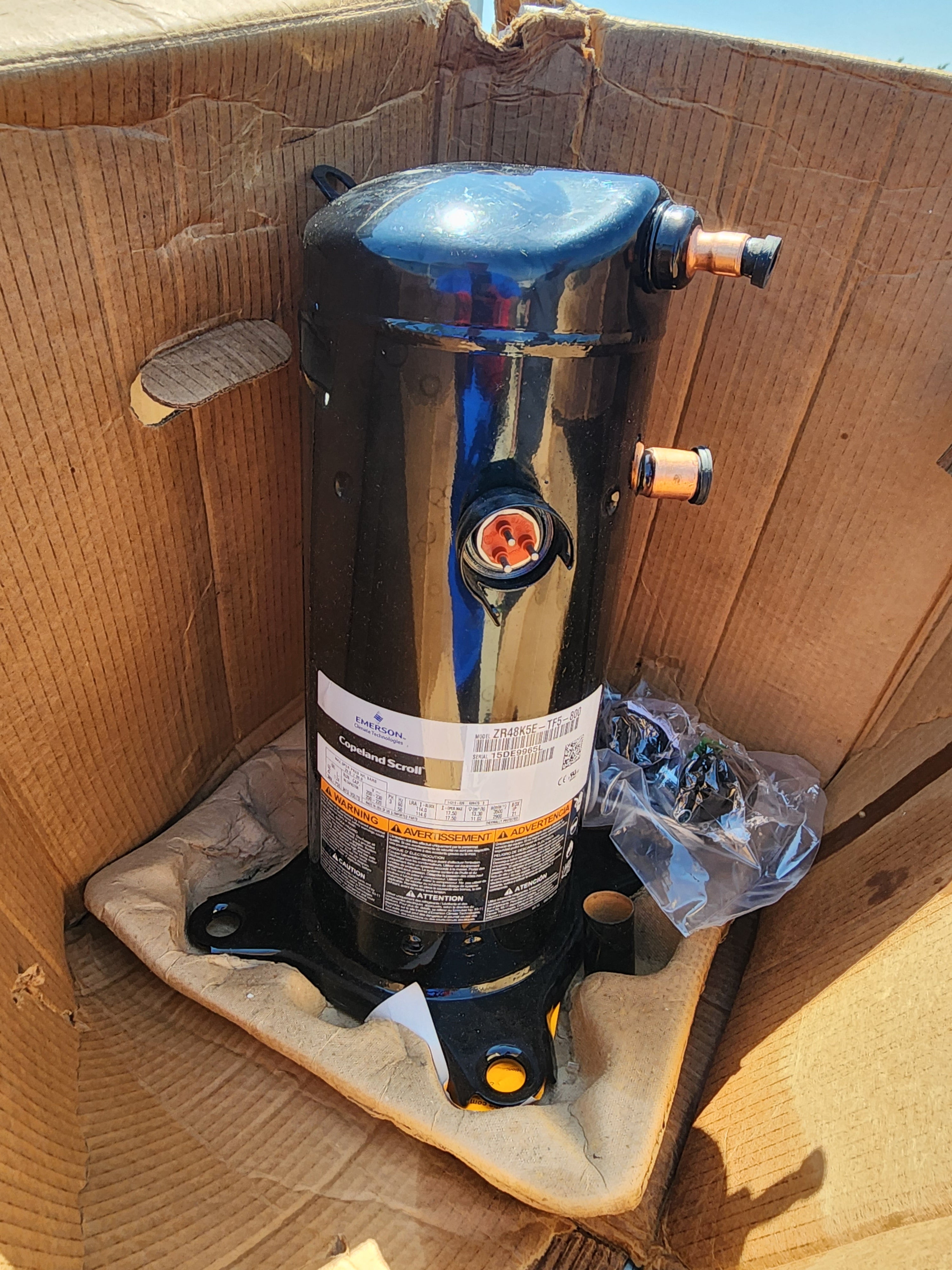

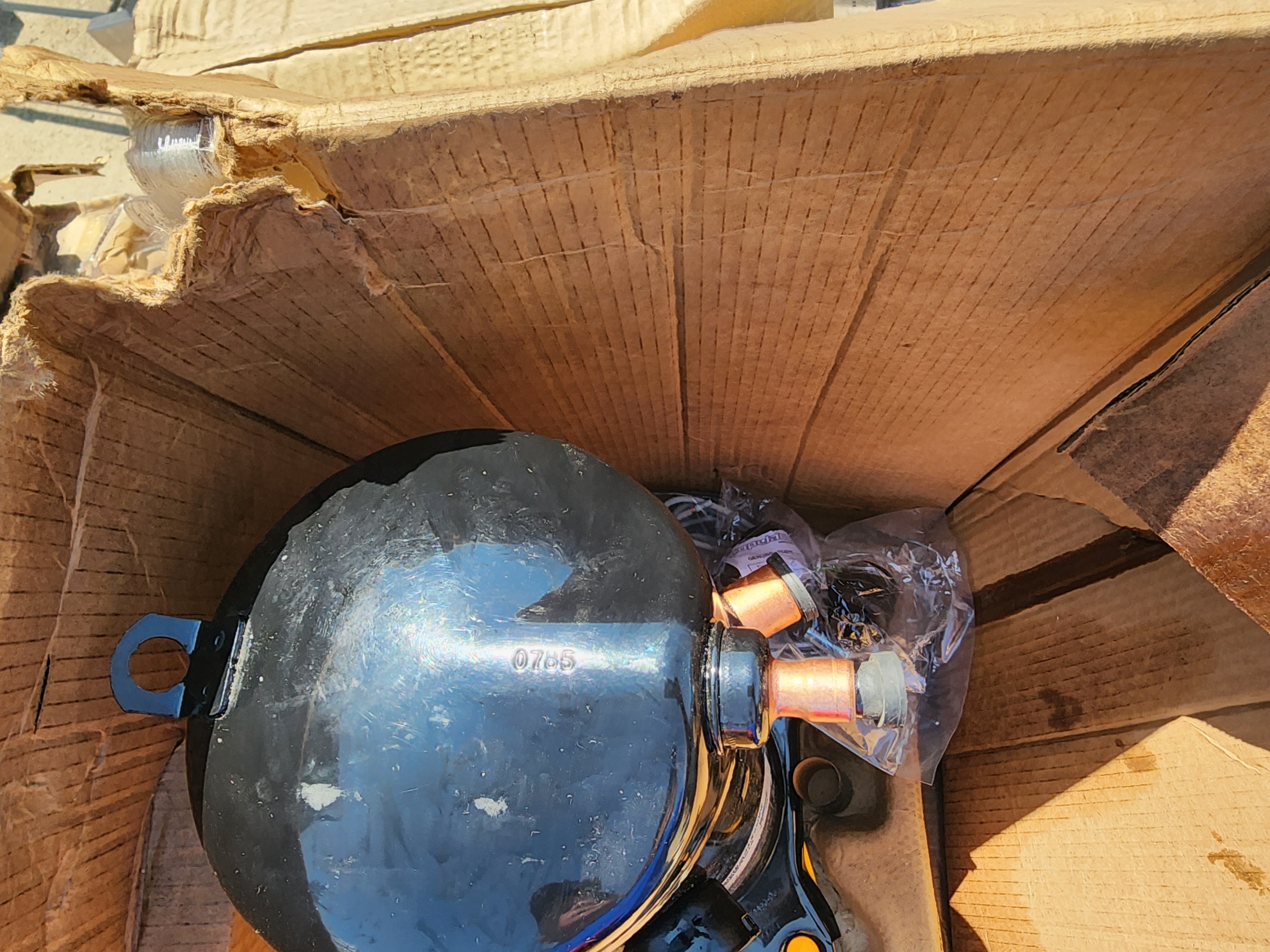

New Emerson Climate Technologies Copeland Scroll Compressor ZR48K5E-TF5-800

This is a brand new item never used

Shipping/Return Information at bottom - Click Here -

Copeland® ZR48K5E-TF5-800 Scroll Compressor, 48200 BtuH Cooling, 4160 W, R-22, HCFC, 11.6 EER, 12 A, 73 dBA

Copeland® Scroll Compressor, 48200 BtuH Cooling, 4160 W, R-22, HCFC, 11.6 EER, 200/230 V, 60 Hz, 3 Phase, 12 A, 7/8 Inch Stub Suction Line, 1/2 Inch Stub Discharge Line, POE Compressor Oil, 73 dBA, 7.5 Inch L x 7.5 Inch W x 17.17 Inch H Mount, 9.69 Inch L x 9.69 Inch W x 16.94 Inch H, Includes: Molded Plug Service

• 3500 Rpm
• Quiet reliable operation, optimized scroll and seal design
• High efficiency motor
• Improved temperature protection
• Larger shaft bearing system
• Internal pressure protection
• New shutdown solution
• Redesigned shell
• Molded plug connection
• Btu/hr ratings are based on 45 deg F evaporating temperature, 130 deg F condensing temperature, 65 deg F return gas temperature and 95 deg F ambient temperature and 115 deg F liquid temperature
• 42 oz initial oil charge
• 705 lbs/hr mass flow
• 34 oz oil recharge

Standard/Approvals: UL SA-2337

Application: Air Conditioning

Specs:

• Amperage Rating: 12 A
• Compressor Oil: POE
• Cooling Capacity: 48200 BtuH
• Dimensions: 9.69 Inch L x 9.69 Inch W x 16.94 Inch H
• Discharge Line Size: 1/2 Inch Stub
• EER Rating: 11.6
• Manufacturer: Emerson Electric
• Mounting Type: 7.5 Inch L x 7.5 Inch W x 17.17 Inch H
• Power Rating: 4160 W
• Refrigerant Type: R-22, HCFC
• Sound Level: 73 dBA
• Suction Line Size: 7/8 Inch Stub
• Voltage Rating: 200/230 V, 60 Hz, 3 Phase
