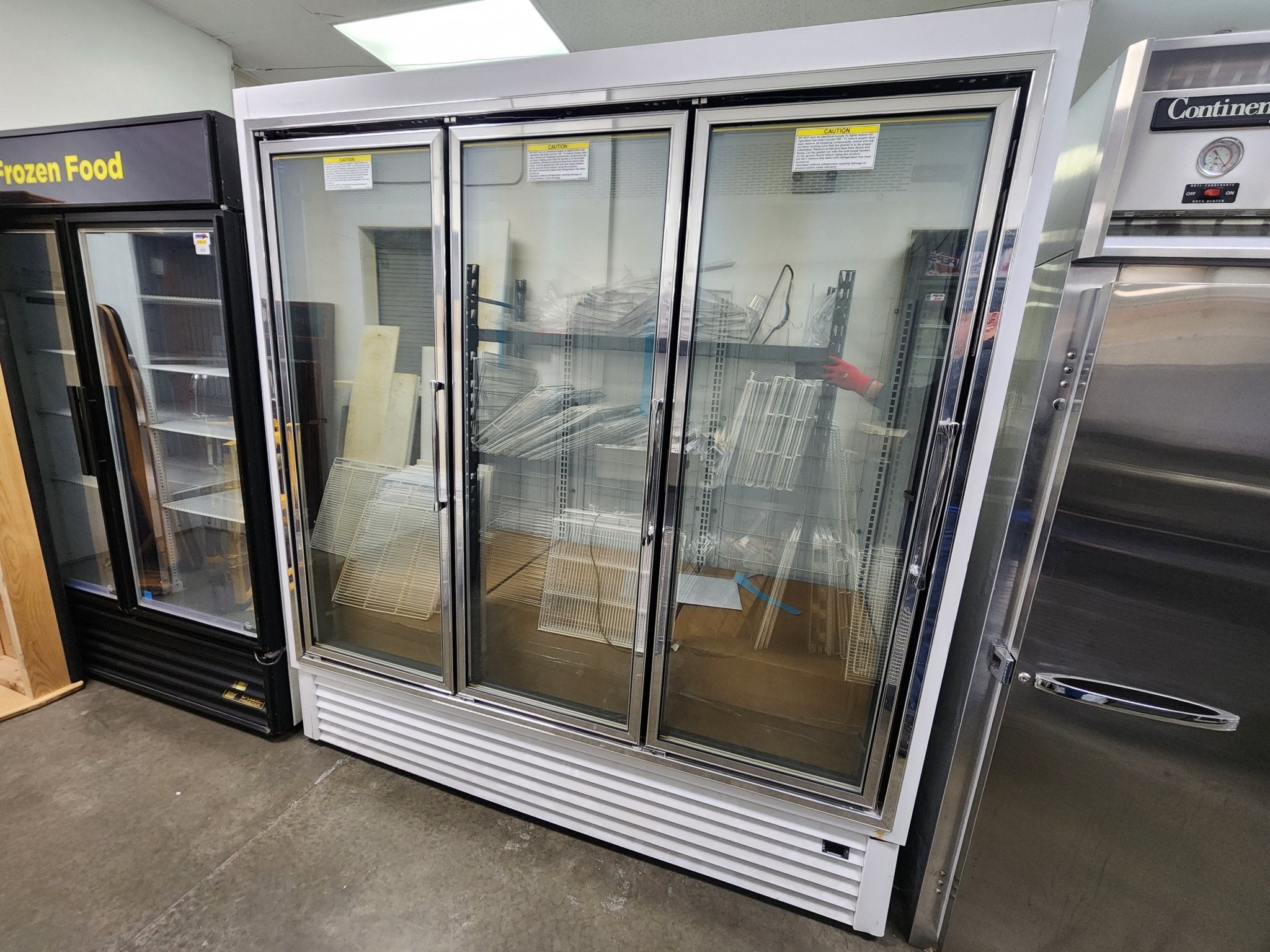

Used Hussmann HGL-3-BS 3 Door Reach-In Cooler Merchandising Freezer
Used Hussmann HGL-3-BS 3 Door Reach-In Cooler Merchandising Freezer
Low stock: 1 left
This is a brand new never used item.
Shipping/Return Information at bottom - Click Here -
Some misc. information from manual
Description:
Hussmann HGL-TS/BS models are self-contained, low temperature, vertical display merchandisers designed for ice cream and frozen foods.
Design features include: heated glass doors for fog-free visibility, automatic defrost, efficient foamed in-place non-CFC insulation, cord connection for self-contained 208-230 volt application, and balanced refrigeration systems for energy-saving performance.
SAFE-NET III™
Your refrigerated case uses a Hussmann Safe-NET™ III temperature and defrost controller to precisely maintain the temperature and prevent frost buildup on the cooling coil.
LEDs indicate when the compressor or refrigeration is on, when the case is in a defrost cycle, if the temperature is outside the desired range, or if there is a sensor failure.
An adjustment knob allows the temperature to be set within the configured range and can power off the controller and compressor.
Your controller has been custom-configured to provide the best temperature and defrost control for your chilled or frozen food.
The front of the controller has an adjustment knob and status LEDs.
The back of the controller has connections for sensors and switched equipment.
The Safe-NET III controller includes the following features and connections.
Adjustment knob: Adjusts the temperature setpoint. Turn adjustment knob to OFF to turn off refrigeration system. Unplug merchandiser from power before servicing the unit.
Controller LEDs: Compressor Powered On LED (green): Lights while the compressor is running or the refrigeration valve is open. Defrost Cycle LED (yellow): Lights while the refrigeration coil is defrosting. Temperature or Sensor Alarm (red): Lights if the temperature is too warm or too cold. Flashes if a sensor fails.
LIGHTING:

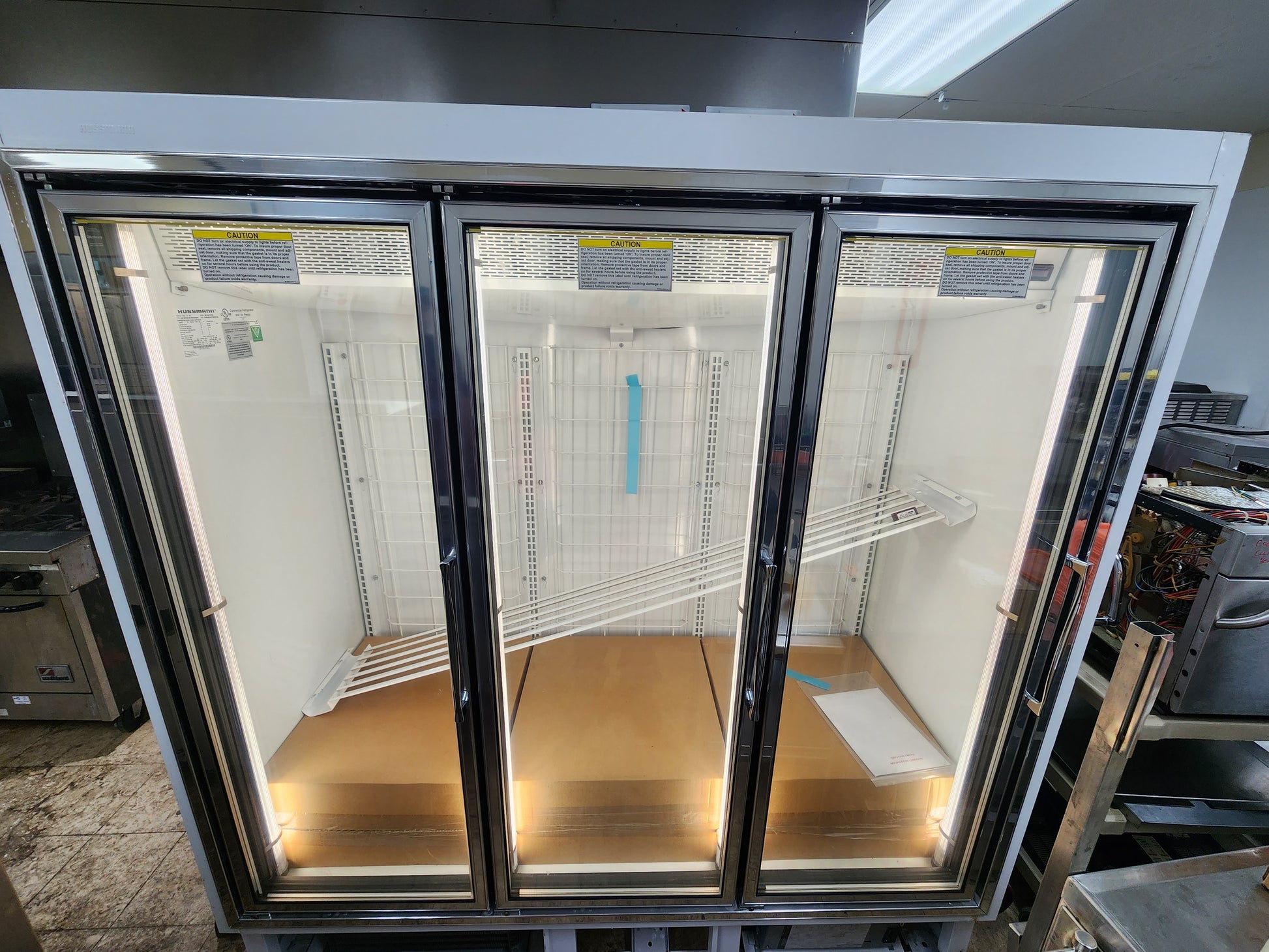

Electronically powered T-8 lamps, located inside each doorway, provide interior lighting.
The tubes are enclosed in a patented lens system to maintain proper heat around the bulb for maximum light intensity.
The tubes also protect the product in case of breakage.
Each HGL model has an ON/OFF switch so lights may be turned off to conserve energy during hours when the store is closed.
The switch is located inside the cabinet above the left-hand door.
This switch only controls the lights.
208-230 V power must be shut off at the main disconnect, located within the store prior to starting any service or maintenance work.
Dimensions:
75 3/8 L
34 5/8 D
80 9/16
1999 (70.60) Interior Volume (Liters / Cu. Feet)

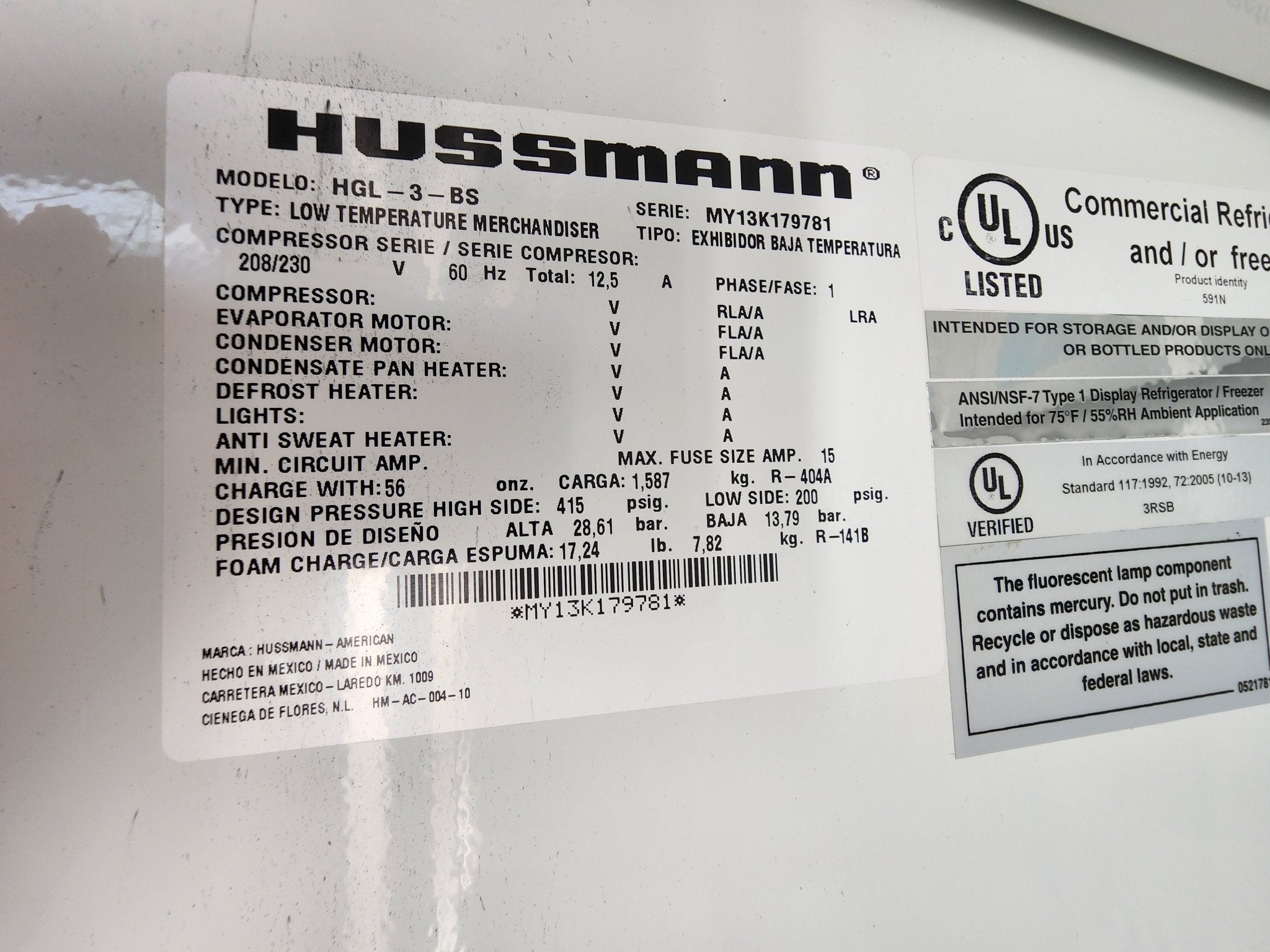

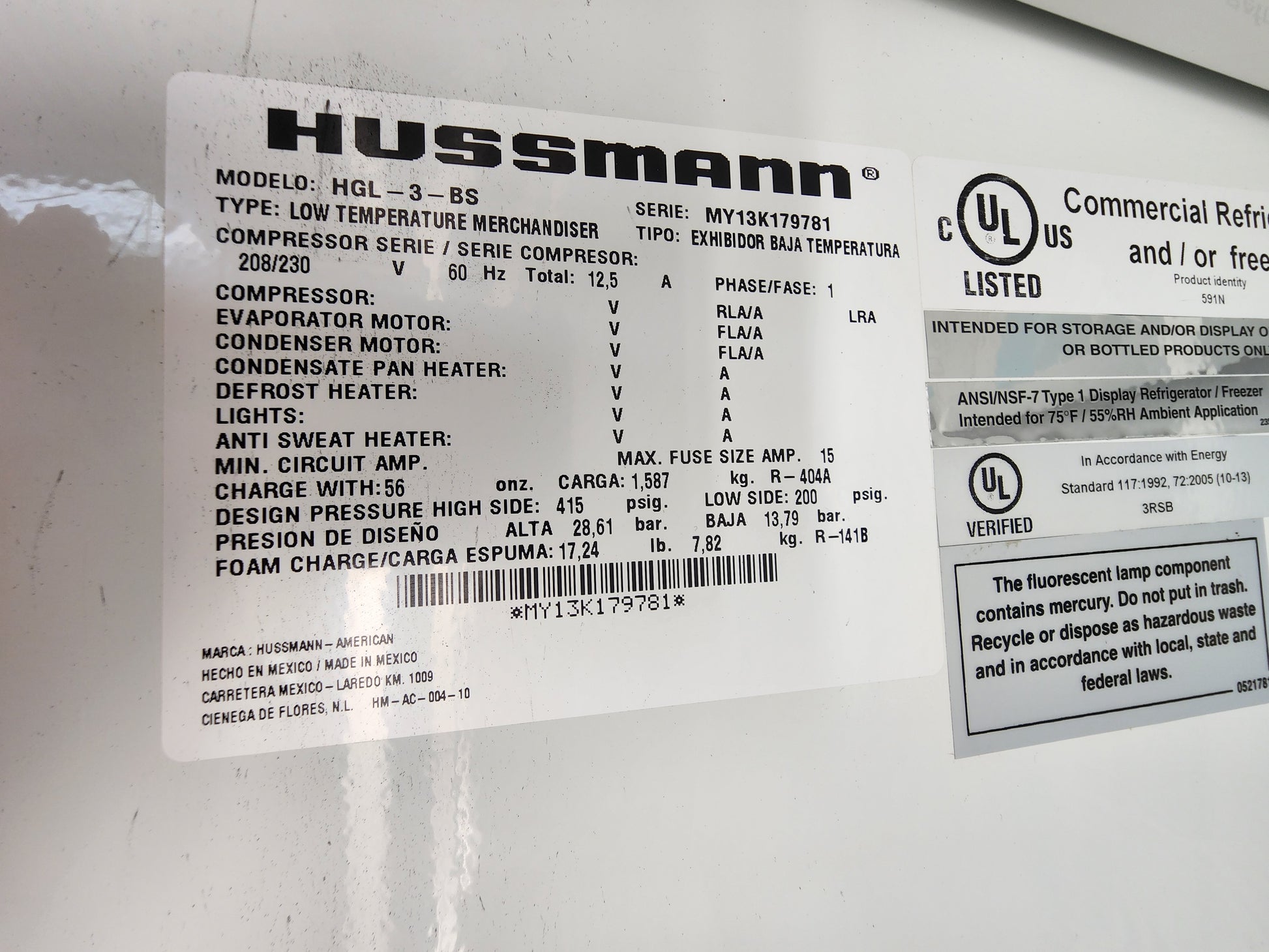

Power:
1 1/2 Nominal HP
R-404A
208/230 V
12.5 Running Amps
